Best 2500 Watt Heater Options for Water Heating and Immersion

Choosing a 2500 watt heater depends on voltage, mounting type, and application. Below is a concise comparison of top-rated 2500W heating elements and immersion heaters suitable for water tanks, RVs, and industrial fittings.

Product	Type	Voltage	Key Feature
DERNORD 240V 2500W Water Heater Element	Screw-In Element	240V	High Watt Density, Electropolished Stainless
DERNORD 240V 2500W Foldback Element	Foldback Screw-Plug	240V	Low Watt Density Foldback Design
DERNORD 120V 2500W Water Heater Element	Screw-In Element	120V	High Watt Density For 120V Systems
Camco 2500W 240V Screw-In Element	Screw-In Element	240V	UL Listed High Watt Density
DERNORD Tri-Clamp 2500W Foldback Element	Tri-Clamp Immersion	240V	1.5″ Tri-clamp Stainless Steel

DERNORD 240V 2500W Water Heater Element Screw-in

Check Price on Amazon

This screw-in water heater element provides 2500W at 240V and features a high watt density stainless steel construction with an electropolish finish. The electropolished surface is intended to reduce surface roughness, which can lower scaling and make cleaning easier in some environments. High watt density elements concentrate heat over a smaller surface area, which can increase heating speed but may require attention to thermostat control and immersion levels.

Key considerations from the listed features include the element’s stainless steel body for corrosion resistance and the high watt density specification that affects heat transfer characteristics.

DERNORD 240V 2500W Foldback Water Heater Element

Check Price on Amazon

This model is a foldback screw-plug heating element that delivers 2500W at 240V. The listed features emphasize a low watt density design achieved by folding the element to increase surface area while minimizing overall length. The foldback configuration helps distribute heat over a larger surface, which can reduce localized overheating and scale buildup.

The product’s design choice—foldback plus low watt density—targets applications where a longer heating surface and gentler heat distribution are desired, such as smaller tanks or where element-to-fluid contact is critical.

DERNORD 120V 2500W Water Heater Element Screw-in

Check Price on Amazon

This 120V 2500W screw-in element offers a high watt density stainless steel construction and electropolished surface as noted in the feature list. A 2500W load on 120V indicates higher current draw compared to a 240V equivalent, which affects circuit sizing and breaker requirements.

From the features: electropolish stainless steel and high watt density are intended to deliver efficient heat transfer. Ensure electrical system compatibility and appropriate protective devices when installing high-current elements on 120V circuits.

Camco 02242/02243 2500W 240V Screw-In Water Heater Element

Check Price on Amazon

The Camco unit is a widely used 240V/2500W screw-in heating element with high watt density and the advantage of being UL Listed per its feature list. UL listing indicates compliance with certain safety and performance standards, which can be important for installations where certification is required.

The high watt density suggests faster heat-up times and efficient energy transfer. The UL listing may ease inspections or meet local requirements for some RV, marine, or household installations.

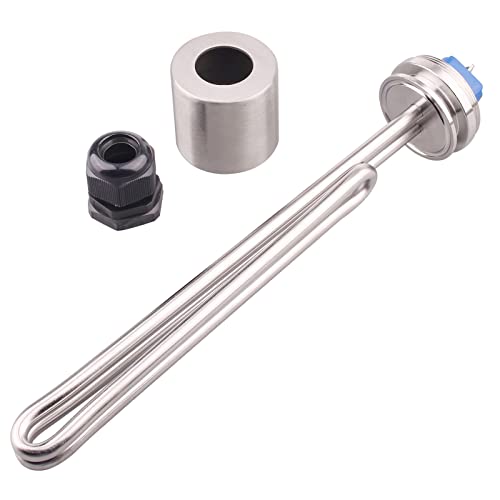

DERNORD 1.5″ Tri-Clamp Foldback 2500W Immersion Element

Check Price on Amazon

This product is a tri-clamp immersion foldback heating element2500W at 240V. The listed features highlight SUS304 stainless steel construction and compatibility with standard 1.5″ tri-clamp connections common in food, brewing, and process tanks.

The tri-clamp format offers tool-free flange sealing options and straightforward installation into tanks with matching sanitary fittings. Foldback geometry increases heated surface while keeping the element compact for confined spaces.

Buying Guide: Choosing The Right 2500W Heater

Selecting the correct 2500W heater involves balancing electrical, mechanical, and application-specific factors. The following sections outline the major considerations.

Voltage And Circuit Requirements

• 120V vs 240V: A 2500W load at 120V draws ~20.8 amps; at 240V it draws ~10.4 amps. Verify breaker capacity and wiring gauge before installation.
• Breaker And Wiring: Use appropriate sized breakers and wire. High-current 120V elements often require 12 AWG or larger wiring and dedicated circuits.

Watt Density And Heating Behavior

• High Watt Density: Heats faster and is compact, but concentrates heat over smaller surface area. Works well in larger volumes with good circulation.
• Low Watt Density / Foldback: Spreads heat over a larger surface, reducing hot spots and minimizing scale buildup risk. Better for smaller tanks or delicate fluids.

Mounting Type And Compatibility

• Screw-In Elements: Standard for many residential and RV tanks. Check thread size, gasket type, and tank opening dimensions.
• Tri-Clamp Immersion: Common in sanitary or process tanks. Ensure flange size and clamp compatibility.

Material And Corrosion Resistance

• Stainless Steel (e.g., SUS304): Corrosion resistant for many water applications; electropolished surfaces reduce roughness and may slow scale adherence.
• Compatibility With Fluid: For saline, hard water, or chemical solutions, verify material compatibility and consider specialty alloys if needed.

Safety And Certification

• UL Listing And Standards: Certified components simplify compliance with local codes and inspections.
• Thermostat And Protections: Use appropriate thermostats, high-limit cutouts, and pressure relief where applicable.

Application-Specific Considerations

• Domestic Hot Water Tanks: Prioritize screw-in elements sized for the tank. Low watt density may extend element life where scale is a concern.
• RV And Marine Use: Consider compact foldback elements for space-limited tanks and ensure corrosion resistance for marine environments.
• Process Or Brewing Tanks: Tri-clamp immersion elements allow sanitary installation and easier removal for maintenance.

Installation And Maintenance

• Gasket And Sealing: Replace gaskets when installing to avoid leaks.
• Element Immersion Level: Ensure the element remains submerged during operation to avoid dry-firing and overheating.
• Scale Management: Hard water increases scale accumulation; choose lower watt density or descaling routines to prolong element life.

Comparison Perspectives

• Performance: High watt density elements heat water faster; foldback designs provide gentler distribution.
• Durability: Material quality (stainless grade, finish) and design (sealed terminals, robust terminals) affect longevity.
• Compliance: UL listed products may be preferable where codes require certified equipment.

Use this guide to match electrical specs, mounting type, and material to your intended application. Properly sizing circuits, protecting elements with appropriate controls, and considering maintenance needs will optimize performance and longevity.
