Best Circulating Coolant Heater for Engine Preheating and Circulation

Overview: This guide compares five circulating coolant heaters and a pump option suitable for engine preheating, generator coolant circulation, and auxiliary heating. The selected units include tank-style circulating heaters with thermostats and a dedicated hot water circulation pump for systems requiring active flow.

Product	Type	Key Spec
Engine Heater, Self Circulating Generator Coolant Pre Heater (Diydeg)	Self‑circulating Coolant Heater	120V, 500W, Thermostat 100–120°F
Kat’s 13150 1500 Watt Aluminum Circulating Tank Heater	Strap‑mount Tank Heater	1500W, Thermostat 135–175°F
Kat’s 13100 1000 Watt Aluminum Circulating Tank Heater	Strap‑mount Tank Heater	1000W, Thermostat 135–175°F
Tefola Engine Water Jacket Heater	Self‑circulating Coolant Heater	120V, 500W, Thermostat 100–120°F
KOLERFLO 3/4 Inch Hot Water Circulating Pump (RS15‑6)	Circulation Pump	110–120V, 3‑speed, 9.5/7.66/5.28 GPM

Engine Heater, Self Circulating Generator Coolant Pre Heater With Thermostat

Check Price on Amazon

This self‑circulating coolant heater is designed for generator and engine preheating with a built‑in thermostat and standard inlet/outlet fittings. The unit is rated at 120V, 500W and regulates coolant temperature between 100–120°F, intended to reduce wear from cold starts and maintain operating temperature in standby equipment.

Features listed include durable ABS and aluminum alloy construction, vibration and shock testing, and supplied mounting hardware. The heater’s standardized inlet/outlet supports stable displacement and water pressure, making it compatible with small engines, gas and diesel units, trucks, marine, and construction equipment.

Because this model is self‑circulating, it relies on thermal convection rather than an external pump. This characteristic simplifies installation in tight spaces but may limit flow rate compared to active circulation systems.

Kat’s 13150 1500 Watt Aluminum Circulating Tank Heater (13150X)

Check Price on Amazon

Kat’s 13150 is a strap‑mount aluminum circulating tank heater designed for larger coolants or radiator tanks where higher wattage is required. The unit is rated at 1500W and includes a thermostat adjustable from 135–175°F, allowing higher hold‑over temperatures suitable for heavier engines or applications needing quicker warm‑up.

Key attributes are versatile strap‑type mounting and an aluminum housing for heat transfer. The product description notes that installation requires moderate mechanical ability; the strap design enables mounting to tanks or hose sections where direct block mounting is impractical.

This heater provides stronger heating capacity than lower‑watt models and is typically used where rapid temperature recovery and higher setpoints are necessary. Thermostat range and wattage should be matched to the coolant volume and ambient conditions for effective operation.

Kat’s 13100 1000 Watt Aluminum Circulating Tank Heater (13100X)

Check Price on Amazon

This 1000W aluminum circulating tank heater from Kat’s offers a mid‑range heating capacity for smaller radiators and coolant tanks. It shares the same thermostatic control range of 135–175°F and strap‑mount installation as the higher‑watt 13150 model.

The unit’s strap mounting provides flexibility to attach to tanks or hoses without internal plumbing changes. Kat’s notes that installation requires moderate mechanical skill. The 1000W output is commonly selected where quicker warm‑up than 500W is needed but without the higher draw of 1500W units.

When evaluating this model, consider coolant volume and heater placement: higher wattage and direct contact with the tank surface improve heat transfer, while improper mounting or low contact area reduces effectiveness.

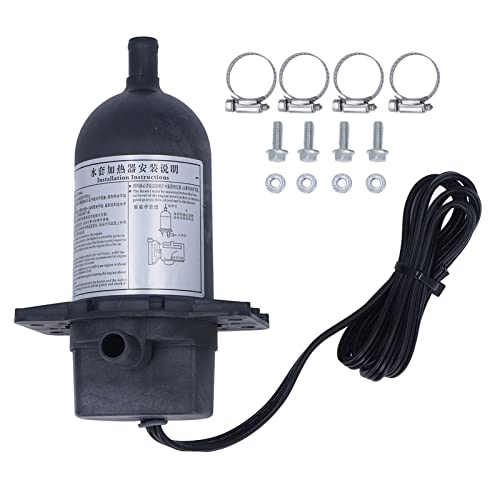

Tefola Engine Water Jacket Heater, Self Circulating Diesel Generator Thermostat Coolant Heater 120V 500W

Check Price on Amazon

The Tefola water jacket heater is a self‑circulating 120V, 500W coolant preheater aimed at diesel generators and similar engines. It advertises a thermostat that maintains coolant between 100–120°F and a construction of ABS and aluminum alloy tested for vibration and shock.

Functionally similar to the Diydeg model, this unit emphasizes low heat loss and durability. The thermostat control range is intended for freeze protection and moderate preheating rather than high setpoint warm‑up. Self‑circulation provides passive flow, reducing plumbing complexity but limiting active flow rates.

Installation considerations include ensuring proper immersion or mounting orientation to maintain thermal convection pathways and verifying compatibility with the engine’s coolant volume and flow characteristics.

KOLERFLO 3/4 Inch Hot Water Circulating Pump 3‑Speed Circulation Water Pump (RS15‑6)

Check Price on Amazon

The KOLERFLO RS15‑6 is a 3/4″ hot water circulating pump with three speed settings and rated power options of 93/67/46W. It supports NPT 3/4″ inlet/outlet, 110–120V operation, and maximum flow rates around 9.5/7.66/5.28 GPM depending on speed.

Unlike self‑circulating heaters, this pump provides active circulation, enabling faster and more consistent heat distribution in systems with low natural convection or larger coolant volumes. Technical features include an aluminum housing, corrosion‑resistant impeller, and a max pressure rating suitable for solar and hydronic systems.

Use cases include adding forced circulation to a heater system, reducing temperature stratification, and preventing pipe freeze. The pump requires proper plumbing fittings and power; pairing with a thermostatic heater can yield controlled, active heating and circulation.

Buying Guide: How To Choose A Circulating Coolant Heater

When selecting a circulating coolant heater or associated pump, consider these core factors to match the device to your engine or system requirements.

1. Heater Type: Self‑Circulating vs Tank/Strap‑Mount

• Self‑Circulating Heaters Use thermal convection to move coolant; best for compact installations with moderate coolant volumes and where simplicity is desired.
• Tank/Strap‑Mount Heaters Mount externally to a coolant tank or hose and transfer heat through the tank wall; suitable for larger volumes and higher wattage needs.

2. Wattage And Heating Capacity

Select wattage relative to coolant volume and ambient temperature. Higher wattage (1000–1500W) shortens warm‑up time and supports larger systems. Lower wattage (500W) may suffice for small engines or freeze protection.

3. Thermostat Range And Control

Thermostatic control determines maintained temperature. Lower ranges (100–120°F) are typical for freeze protection and gradual preheating. Higher ranges (135–175°F) provide faster warm‑up and higher operating temperatures for heavy engines.

4. Installation And Mounting

• Consider access to the coolant circuit, mounting space, and whether tank strap mounts or in‑line installations are easier.
• Strap heaters require secure contact and may need moderate mechanical ability; self‑circulating units may need proper immersion position.

5. Flow Method: Passive vs Active Circulation

Passive (thermal convection) is quieter and simpler but provides lower flow rates. Active circulation (external pump) ensures consistent flow, faster heat distribution, and reduced stratification in larger systems.

6. Compatibility And Materials

Check material compatibility with coolant types (ethylene glycol, propylene glycol, water). Aluminum housings are common for heat transfer; look for corrosion‑resistant components if using glycol or high mineral content water.

7. Durability And Vibration Resistance

Engines and generator environments require units rated for vibration and shock. ABS and aluminum alloy construction and explicit vibration testing are indicators for mobile or marine applications.

8. Electrical Requirements And Safety

Match voltage (typically 120V) and confirm available circuit capacity relative to heater wattage. Consider dedicated circuits for high‑wattage units and follow local electrical codes for wet‑environment wiring.

9. Pump Selection Criteria

• Flow Rate: Choose a pump that provides adequate GPM for your coolant volume and required turnover.
• Head/Pressure: Verify maximum head aligns with system resistance (length of piping, elevation changes).
• Speed Control: Multiple speeds allow balancing flow and power consumption.
• Connectors: Ensure NPT or other fittings match existing plumbing.

10. Matching Heater To Use Case

• For small standby generators or engines in mild climates, a 500W self‑circulating heater with 100–120°F thermostat may be sufficient.
• For larger engines, rapid warm‑up, or cold climates, choose a 1000–1500W tank/strap heater with a higher thermostat range.
• To improve system uniformity and speed, pair a heater with an external circulation pump sized for the system.

Comparative Perspectives

Compare based on thermal response (wattage and thermostat), installation complexity (strap vs immersion), and maintenance (active pumps require seals and possible replacement while passive heaters have fewer moving parts).

Also weigh operational cost (higher wattage draws more power) versus benefits in reduced engine wear, faster run‑up, and increased reliability in cold starts.
