Quick Overview: This guide compares reliable electric heater switches and sequencers for home heaters, fireplaces, RV water heaters, and replacement parts. The table below summarizes the five selected products covered in detail.
| Product | Type | Key Feature |
|---|---|---|
| GZS-15 Rotary Switch 4 Position | Rotary Speed Selector | 4 Positions, flame-retardant shell |
| Emerson 24A34-3 Electric Heat Sequencer | Heat Sequencer (2 switches) | Two switches, 1–20 sec timings |
| EPLZON 4-Position 3-Speed Rotary Switch | Rotary Speed Selector (Pack of 2) | 50000 electrical cycles, knobs included |
| 2 Pack 120927-24 On Off 120V Rocker Switch | Lighted Rocker Switch | 3-prong, 120V, compatible with fireplace models |
| Emerson 24A34-2 Electric Heat Sequencer | Heat Sequencer (1 switch) | Single-switch fan/electric heat sequencing |
Content Navigation

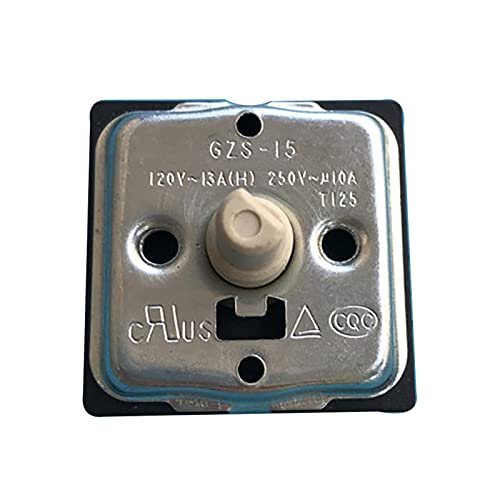

GZS-15 Rotary Switch 4 Position 3 Speed
Brand: HMHAMA. This replacement rotary selector fits many portable heaters and radiators offering 4 positions and multi-gear options (2, 3, or 4 gear versions). The overall size is compact at 32mm x 32mm with a 45mm knob diameter, suitable for panel mounts.
Rated at 13A-125V / 10A-250V, the unit uses a flame-retardant shell and materials designed for high temperature resistance and oxidation protection. Ideal for converting or replacing older speed selector controls, its construction emphasizes durability and wear resistance.
Considerations: Check panel cutout diameter and knob compatibility before purchase. The multiple gear options let you match the replacement to the original heater control layout.
Emerson 24A34-3 Electric Heat Sequencer, 2 Switches
Call 888-896-7031 for Free Local HVAC Quotes – Compare and Save Today!
Brand: Emerson. The 24A34-3 is a factory-style electric heat sequencer configured with two internal switches to control fan and heating element sequencing. It provides controlled delay for fan engagement and heat stage transitions.
Key specification: On timings of 1–20 seconds enabling staged engagement to reduce inrush and manage heat sequencing. It is marketed as a direct replacement for many fan/heat sequencing functions in electric furnaces and heaters.
Application notes: Designed to coordinate with multiple-stage heaters where fan timing and element staging are critical. Confirm terminal layout and mounting style with your existing sequencer before installation.
EPLZON 4-Position 3-Speed Rotary Switch (2-Pack)
Brand: EPLZON. This comes as a pack of two 4-position, 3-speed rotary switches with knobs and mounting nuts included. The action is latching with clear position mapping: OFF, L-1, L-2, L-3, matching typical heater speed selectors.
Durability figures list an electrical lifespan of 50,000 cycles and a mechanical life of 10,000 cycles. Rated at 13A 120VAC and 10A 250VAC, it supports AC fan and heater circuits within those limits.
Call 888-896-7031 for Free Local HVAC Quotes – Compare and Save Today!
Practical notes: The included knobs ease installation and replacement. Confirm that terminal types and rear spacing match your heater’s wiring harness to avoid modification.
2 Pack 120927-24 On Off 120 Volt Rocker Switch
Brand: BOAISDHY. This product is a lighted 3-prong rocker switch compatible with many electric fireplaces and heater models. It is listed as parts model 120927-24 and references compatibility with specific Twin Star and related fireplace unit model numbers.
Rated for heavy-duty switching, the listing notes capacity equivalences to earlier HF616 Series switches. The lighted actuator provides a clear visual on/off indicator for user convenience.
Installation tips: Confirm the three-prong connector and mounting dimensions fit your fireplace or heater panel. Compatibility lists should be matched carefully to ensure correct replacement.
Emerson 24A34-2 Electric Heat Sequencer, 1 Switch
Brand: Emerson (White-Rodgers). The 24A34-2 is a single-switch electric heat sequencer designed to provide fan and heat sequencing for single-stage heaters and electric furnaces. It corresponds to White-Rodgers part numbers and common OEM replacements.
Manufacturer references indicate compatibility and ease of swapping into systems that require a single timing switch. The device controls sequencing to protect elements and manage fan operation timing.
Replacement guidance: Verify existing sequencer terminals and timing needs. Single-switch units are best for simpler heater setups with one controlled stage.
Buying Guide: How To Choose An Electric Heater Switch
Selecting the right switch involves matching electrical, mechanical, and functional characteristics. Below are the key considerations when shopping for replacement switches or sequencers for electric heaters.
Tips for Getting the Best HVAC Prices
- Prioritize Quality Over Cost
The most critical factor in any HVAC project is the quality of the installation. Don’t compromise on contractor expertise just to save money. - Check for Rebates
Always research current rebates and incentives — they can significantly reduce your overall cost. - Compare Multiple Quotes
Request at least three estimates before making your choice. You can click here to get three free quotes from local professionals. These quotes include available rebates and tax credits and automatically exclude unqualified contractors. - Negotiate Smartly
Once you've chosen a contractor, use the proven strategies from our guide — How Homeowners Can Negotiate with HVAC Dealers — to get the best possible final price.
Electrical Ratings And Compatibility
- Voltage And Current Rating: Match the switch ratings (e.g., 13A@120VAC, 10A@250VAC or 20A@125VAC) to your heater’s circuit to handle continuous load and startup currents.
- Number Of Poles And Terminals: Verify single-pole, double-pole, or multi-terminal layouts match your wiring. Sequencers often have multiple internal switches or terminals.
- Inrush Current: High inrush from heating elements or motors may require higher rated or sequenced control to avoid premature switch failure.
Function And Control Type
- Rotary Speed Selectors: Used for fan speed and multi-speed heaters (positions: OFF, L-1, L-2, L-3). Check physical mounting, knob size, and panel cutout.
- Rocker And Toggle Switches: Often used for simple on/off control and may include illumination for status feedback.
- Heat Sequencers: Designed to stagger element and fan engagement to reduce electrical stress and manage thermal cycling. Choose single or multi-switch sequencers based on the number of stages.
Mechanical Fit And Installation
- Panel Cutout And Knob Dimensions: Confirm the switch body depth, mounting nut size, and knob diameter to prevent fit issues.
- Terminal Type: Spade, screw, or plug terminals must match existing harness connectors or require adapter wiring.
- Durability Ratings: Look for electrical cycle ratings (e.g., 50,000 cycles) and materials such as flame-retardant housings for high-temperature environments.
Application-Specific Considerations
- Fireplace Replacements: Ensure model compatibility lists include your fireplace model number; lighted rockers are common in these applications.
- RV And Water Heater Switches: For RVs, switches may include special safety features tied to water presence sensors or element protection.
- Sequencer Timing Requirements: Verify on-delay timings (e.g., 1–20 seconds) align with your system to ensure proper fan and element sequencing.
Safety And Standards
- Flame-Retardant Materials: Prefer switches with high-temperature or flame-retardant housings for heater applications.
- Certifications: Check for UL, CSA, or other listed approvals where applicable for electrical safety compliance.
- Appropriate Ampacity: Never select a switch with lower amp capacity than the heater circuit requires—this raises fire risk and failure potential.
Comparison Perspectives
- Durability vs. Cost: Rotary switches with high cycle ratings offer longevity for frequent use; sequencers are more specialized and can prevent system stress.
- Functionality vs. Simplicity: Single-switch sequencers and rocker switches provide straightforward replacement, while multi-position rotary selectors offer finer speed control.
- OEM Fit vs. Universal Parts: OEM sequencers (Emerson/White-Rodgers) often match form and function directly, whereas universal rotary switches may require minor adjustments but can be more economical.
Installation And Troubleshooting Tips
- Always disconnect power before replacement and confirm voltage with a multimeter.
- Label wires prior to disconnection and photograph terminal layouts to ensure correct reconnection.
- Test switch function with the device powered on only after secure mounting and wiring checks.
- If a sequencer fails repeatedly, inspect for underlying causes such as shorted elements, blocked airflow, or loose connections that cause overheating.
