The right pressure switch ensures safe ignition and operation of gas heaters, furnaces, and pool/spa heaters. Below are five widely compatible and replacement-ready options suitable for residential and pool systems. The summary table lists model, compatibility, and a quick note on the switch type to help you compare at a glance.
| Product | Compatibility / Use | Key Note |
|---|---|---|
| Pentair 472180 Green Air Pressure Switch | Pentair MiniMax pool & spa heaters (250, 300) | OEM replacement for Pentair heaters |
| LEFOO LF31 Water Heater Pressure Switch | Gas furnaces, water heaters, HVAC applications | Adjustable set point, wide range (0.1″–34″ W.C.) |
| Replacement For Hayward FDXLWPS1930 | Hayward Universal H-Series pool & spa gas FD heaters | Model-specific replacement for FD series |
| Allparts 60146 .40″ W.C. Pressure Switch | Compact furnaces and overhead heaters (MHU/HSU series) | Fixed low-pressure switch for compact furnaces |
| RAMATA 470190 Water Pressure Switch | Pentair PowerMax & MiniMax Plus pool & spa heaters | Replacement for Pentair 470190; UL certified |
Content Navigation

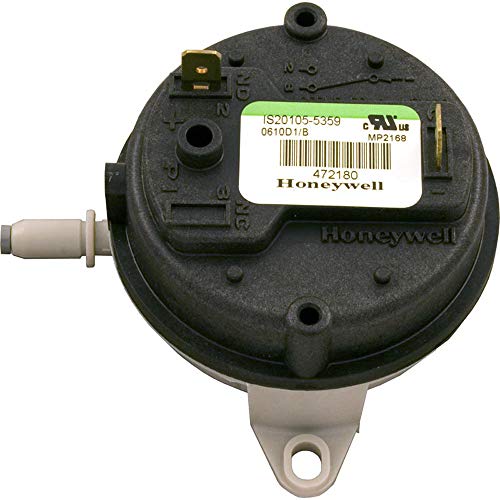

Pentair 472180 Green Air Pressure Switch
This Pentair replacement air pressure switch is designed specifically for MiniMax pool and spa heaters. It is commonly used on MiniMax NT STD and Low NOx models for sizes listed in compatibility. The switch monitors air pressure in the flue/vent circuit to confirm proper draft before allowing ignition.
Features referenced from the product listing include direct compatibility with specified Pentair models and intended use as a replacement part. The component aligns with the original equipment design, providing a straightforward swap for failing air pressure switches in supported heaters.
LEFOO LF31 Water Heater Pressure Switch
The LEFOO LF31 is a versatile pressure switch for gas furnaces and water heaters, capable of sensing positive, negative, or differential pressure. It is factory set at 50 Pa but adjustable across a wide range. The unit includes springs, orifice restrictors, and a hardware kit for installation flexibility.
Call 888-896-7031 for Free Local HVAC Quotes – Compare and Save Today!
Key listed specifications: set point range from 0.10″ to 34.0″ W.C., maximum pressure rating up to 40″ W.C., SPDT contact arrangement, and an electrical rating of 5A/24VAC. The temperature range spans -40°F to 190°F, making it compatible with many HVAC environments. Its adjustability is useful where a specific cut-in pressure is required.
Replacement For Hayward FDXLWPS1930 Switch
This replacement water pressure switch is intended for Hayward Universal H-Series forced-draft pool and spa gas heaters (models containing “FD” manufactured after 5/11/2010). It functions to verify water pressure or flow and prevents heater operation when the required water pressure condition is not met.
The listing highlights model compatibility (H150FDN through H400FDP series) and the safety role of the pressure switch in preventing ignition when flow or pressure is insufficient. The product is described as easy to install and cost-effective, intended for models identified by the heater nameplate.
Allparts 60146 .40″ W.C. Pressure Switch
The Allparts 60146 is a fixed .40″ W.C. replacement pressure switch for compact furnaces and overhead workshop heaters. It is compatible with various MHU and HSU series models and intended as a direct replacement to restore low-pressure sensing for combustion air or vent monitoring.
Call 888-896-7031 for Free Local HVAC Quotes – Compare and Save Today!
Product features indicate compatibility with ENERCO replacement parts and suitability for compact heaters such as MHU45, HSU45, MHU75, and others. The fixed set point design simplifies installation when the original switch specification is known and required.
RAMATA 470190 Water Pressure Switch
The RAMATA 470190 is designed as a replacement for Pentair PowerMax and MiniMax Plus pool and spa heaters. It replaces Pentair part number 470190 and is listed as UL certified with corrosion-resistant materials to extend service life.
According to the product description, the switch turns off the burner if water flow is interrupted. The listing emphasizes material upgrades for oxidation resistance and longer service life, and indicates suitability across model numbers 150–400 in the PowerMax and MiniMax Plus series.
Buying Guide: Choosing The Right Gas Heater Pressure Switch
Selecting a pressure switch requires matching mechanical, electrical, and performance requirements. Below are the key considerations to evaluate when choosing a replacement or upgrade.
Tips for Getting the Best HVAC Prices
- Prioritize Quality Over Cost
The most critical factor in any HVAC project is the quality of the installation. Don’t compromise on contractor expertise just to save money. - Check for Rebates
Always research current rebates and incentives — they can significantly reduce your overall cost. - Compare Multiple Quotes
Request at least three estimates before making your choice. You can click here to get three free quotes from local professionals. These quotes include available rebates and tax credits and automatically exclude unqualified contractors. - Negotiate Smartly
Once you've chosen a contractor, use the proven strategies from our guide — How Homeowners Can Negotiate with HVAC Dealers — to get the best possible final price.
Compatibility And Model Match
- OEM Part Number Match: Whenever possible, match the exact replacement part number or the heater model list provided by the manufacturer. This avoids mismatched mounting, port sizes, and electrical terminals.
- Model-Specific Designs: Some switches are engineered specifically for series (e.g., Hayward H-Series FD, Pentair MiniMax). Using a model-specific switch ensures alignment with the original safety logic and mounting.
Pressure Range And Set Point
- Fixed vs Adjustable: Fixed switches (e.g., Allparts .40″ W.C.) are suitable when the OEM set point is known. Adjustable switches (e.g., LEFOO LF31) offer flexibility across installation conditions and different appliance types.
- Units And Range: Check units (inches of water column “W.C.” or Pascals). Ensure the switch’s set point and maximum rating cover the application’s expected operating pressure and any startup transients.
Type Of Pressure Sensed
- Air/Vent Pressure vs Water Flow Pressure: Some switches detect vent pressure (airflow/draft) while others monitor water pressure or flow in pool heaters. Verify whether the application requires an air pressure switch or a water flow/pressure switch.
- Positive/Negative/Differential: For HVAC and furnaces, switches may sense positive, negative, or differential pressure—confirm which is needed for your system.
Electrical Ratings And Contact Arrangement
- Voltage And Current: Confirm electrical rating (e.g., 5A/24VAC) and ensure compatibility with the control circuit of the heater. Overloading a switch can cause failure or unsafe conditions.
- Contact Type: SPDT, SPST, or other arrangements affect how the switch interfaces with control boards and safety circuits.
Environmental And Temperature Range
- Operating Temperatures: Check the recommended temperature range for the switch to ensure reliable operation in attic, garage, or outdoor equipment locations.
- Ingress And Corrosion Resistance: For pool and spa heaters, materials resistant to corrosion and oxidation extend life in humid and chlorinated environments.
Installation Considerations
- Mounting And Port Fit: Verify the physical mounting, tubing/port size, and terminal orientation to avoid complications during replacement.
- Included Hardware: Some units include springs, restrictors, or a hardware kit for configuration (e.g., LEFOO LF31), which can simplify matching to the original setup.
- Ease Of Replacement: Model-specific replacements typically allow plug-and-play swaps. Generic or adjustable switches may require calibration or minor modifications.
Safety And Certification
- UL/CSA Certifications: Listings that indicate UL certification or equivalent compliance offer assurance that the switch meets recognized safety standards.
- Fail-safe Function: The switch should reliably prevent ignition or shut down burners if required conditions (flow, draft, pressure) are not met.
Performance Comparisons
- OEM vs Aftermarket: OEM or OEM-equivalent replacements (Pentair, Hayward) often match specifications exactly. Aftermarket options may provide improved materials or adjustable ranges but require careful selection to match function.
- Adjustable Range Benefit: Adjustable switches like the LEFOO LF31 suit varied installations and troubleshooting but add the need for calibration. Fixed switches reduce adjustment errors when the required set point is known.
- Application-Specific Features: Water pressure switches for pool/spa heaters often include corrosion-resistant construction, while furnace switches emphasize vent/air sensing and temperature tolerance.
Maintenance And Troubleshooting Tips
- Visual Inspection: Check tubing for blockages, kinks, or air leaks. Replace brittle tubing and ensure ports are clear.
- Functional Testing: Use a manometer or calibrated gauge to verify the switch actuates at the expected pressure. For adjustable models, document the set point after tuning.
- Intermittent Faults: Intermittent tripping often stems from blocked vent paths, failing fans, or degraded tubing—not necessarily the switch itself. Diagnose the full air/water path before replacing the switch.
Summary Comparison Checklist
- For Exact OEM Fit: Choose model-specific parts (Pentair 472180, Hayward FDXLWPS1930, RAMATA 470190).
- For Flexible Use Across Systems: Choose adjustable range switches (LEFOO LF31).
- For Compact Furnaces: Choose fixed, compact furnace-rated switches (Allparts 60146).
- For Corrosive Environments: Prioritize UL certification and corrosion-resistant materials (RAMATA listing mentions oxidation resistance).
