Selecting the right patio heater control valve or safety kit ensures reliable ignition, flame failure protection, and tilt shutoff for outdoor propane heaters. Below is a concise comparison of five widely available replacement valve kits that fit common standing and tabletop propane heaters.
| Product | Key Feature | Recommended For |
|---|---|---|
| Lemfema Propane Gas Patio Heater Repair Kit | Thermocouple + Main Control Valve, M10 inlet | General propane patio heaters with thermoelectric safety |
| TEENGSE Fire Pit Control Safety Valve | Brass low-pressure valve with thermocouple | Outdoor fire pits and standing patio heaters |
| MCAMPAS CSA Certified Gas Safety Control Valve | 1/2 PSI valve with integrated piezo igniter | Garden Sun and similar heaters needing igniter |
| Stanbroil Low Pressure Flame Failure Control Valve Kit | 3/8″ male flare threads, 600mm thermocouple | High-BTU low-pressure heaters and grills |
| BGD Brass Safety Valve Main Control Kit | Full pilot assembly with tilt switch and wiring | Comprehensive replacements requiring pilot tubing |
Content Navigation
Lemfema Propane Gas Patio Heater Repair Kit
This kit includes a main control valve with M10*1 female inlet thread and a 7/16”-24UNF outlet thread, plus a thermocouple and dump switch components. It is designed for low-pressure propane patio heaters with thermoelectric safety systems. The spindle shaft is specified as 8mm, and the pilot connection thread is M8*1.
Installation notes provided by the manufacturer explain that the thermocouple body is smooth and tapered rather than threaded, and may require enlarging the mounting hole or using heat-resistant epoxy for stabilization. The kit is gold-plated at connectors and intended to address indicator light failures by replacing both the thermocouple and control switch components.
TEENGSE Fire Pit Control Safety Valve
The TEENGSE kit features a brass low-pressure control valve and a thermocouple, marketed as suitable for outdoor propane patio heaters, standing heaters, and fire pit applications. The kit emphasizes heavy-duty brass construction for durability and long service life.
Call 888-896-7031 for Free Local HVAC Quotes – Compare and Save Today!
Packaging lists a vertical installation recommendation at the device opening. The design is focused on simplicity and compatibility with common propane heater assemblies. The kit’s brass valve and separate thermocouple make it suitable for straightforward replacements where original fittings and thread types match.
MCAMPAS CSA Certified Gas Safety Control Valve
MCAMPAS supplies a CSA-certified 1/2 PSI brass safety valve with an integrated piezo igniter and a thermocouple solenoid valve. Thread specification for the thermocouple is M8x1. Performance figures note opening and closing current ranges for the thermocouple solenoid, which are relevant to compatibility with heater electronics.
The integrated igniter includes a rectangular outlet port for connecting an electronic igniter wire. This kit is targeted at heaters that require an ignition source integrated with the control valve, and where CSA certification or specific current thresholds are desired for safety compliance.
Stanbroil Low Pressure Flame Failure Control Valve Kit
The Stanbroil kit is specified for low working pressure up to 1/2 PSI (65 mbar) and uses 3/8″ male flare thread inlet/outlet. The package typically includes a control valve, a 600mm thermocouple, and a bakelite control knob. Material construction is brass to support durable service in outdoor environments.
Call 888-896-7031 for Free Local HVAC Quotes – Compare and Save Today!
This kit lists a maximum BTU rating context and is suitable where flare fitting connections are standard. The long thermocouple lead can be helpful for routing sensor wiring in taller heater assemblies or where the pilot location is offset from the valve body.

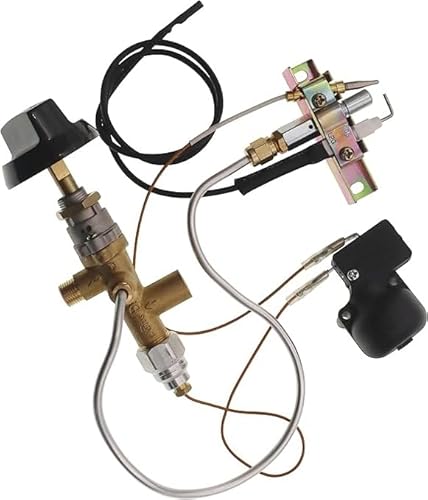

BGD Brass Safety Valve Main Control Kit
The BGD kit provides a comprehensive pilot assembly including main control valve with inlet, outlet and pilot ports, pilot tubing, flat terminal connections, and an anti-tilt (THP-ATM) switch. Wire lengths for pilot and spare wiring are specified to facilitate direct replacement.
This kit aims to solve multiple issues at once by replacing the pilot tube, thermocouple connections, tilt switch, and valve. The manufacturer recommends testing all connections for tightness after installation, and the kit includes common terminal sizes for compatibility with many heater models.
Buying Guide For Patio Heater Control Valves
When selecting a patio heater control valve or replacement safety kit, evaluate compatibility, safety features, and installation needs across several perspectives described below.
Compatibility And Thread Types
- Check inlet and outlet thread sizes (examples: M10*1, 7/16”-24 UNF, 3/8″ male flare). Thread mismatch is a common install problem.
- Verify pilot thread size (M8*1 is common) and thermocouple terminal type (flat 6.3mm, round, or specific connector).
- Confirm the kit is designed for propane if you use LP; many valves are not suitable for natural gas.
Pressure Rating And BTU Considerations
- Low-pressure valves often list maximum working pressure (typical 1/2 PSI or 65 mbar). Choose a valve rated for the heater’s pressure and BTU output.
- High-BTU heaters may need specific valves or larger orifices—check manufacturer guidance or model-specific parts lists.
Safety Features
- Thermocouple Flame Failure: Ensures the valve closes if the pilot fails; verify thermocouple current ratings if listed.
- Anti-Tilt / Tilt Switch: Shuts gas off if the heater falls over; essential for standing heaters.
- Integrated Igniter: Piezo or electronic igniters on the valve can simplify installation where ignition wiring is required.
Materials And Durability
- Brass construction is common for durability and corrosion resistance in outdoor settings.
- Gold-plated connectors or sealed terminals can reduce oxidation risk on thermocouple contacts.
Installation And Fitment
- Determine whether the thermocouple has a threaded body or a smooth tapered body—mounting methods differ and may require drilling or epoxy stabilization.
- Consider wire length for the thermocouple and pilot wiring; longer leads help route to taller headers or enclosed housings.
- Some kits assume vertical installation; verify orientation compatibility with your heater.
Regulatory And Certification Factors
- CSA certification or similar approvals may be important for code compliance in some regions. Check product listing details if certification matters for your installation.
Repair Scope: Partial vs Full Kits
- Partial kits (valve + thermocouple) are suitable for simple control valve failures or thermocouple replacement.
- Full pilot assemblies with tubing and tilt switches are useful when multiple components are failing or when you need to restore original functionality.
Multiple Comparison Perspectives
- Performance Perspective: Compare thermocouple current ratings and valve responsiveness when listed.
- Fitment Perspective: Match thread specifications and connector type rather than relying solely on brand claims.
- Safety Perspective: Prefer kits that include tilt switches and flame-failure mechanisms if missing from the existing heater.
- Installation Complexity: Integrated igniters reduce wiring steps, while separate igniters may require additional connections.
Following these considerations will help ensure the replacement control valve or safety kit you choose fits mechanically, meets safety needs, and restores reliable operation to your propane patio heater.
