What Is A Geothermal AC Unit: The Ultimate Guide To Geothermal Cooling Systems In America

As energy costs rise and sustainability becomes a priority, many homeowners and businesses are seeking climate control solutions that are both efficient and eco-friendly. Geothermal AC units offer a compelling alternative to traditional heating and cooling systems, delivering remarkable energy savings and long-term value. This guide explores everything American users need to know about geothermal air conditioning technology, its benefits, working principles, installation, and considerations for adopting geothermal systems in the United States.

Summary Table: Key Aspects Of Geothermal AC Units

Aspect	Geothermal AC Units	Traditional AC Units
Energy Efficiency	Up to 70% more efficient	Standard efficiency
Operation	Transfers heat using underground loops	Uses refrigerant with outdoor coils
Environmental Impact	Low emissions, uses renewable energy	Higher emissions, uses electricity/fossil fuels
Lifespan	20–25 years for heat pump, 50+ years for ground loop	10–15 years
Installation Cost	Higher initial investment	Lower upfront cost
Operating Cost	Lower due to high efficiency	Higher, depending on energy market
Maintenance	Minimal, primarily filter changes and checks	Regular maintenance required

What Is A Geothermal AC Unit?

A geothermal AC unit, also known as a geothermal heat pump or ground-source heat pump, is a high-efficiency air conditioning and heating system that uses the stable temperature of the earth to provide cooling (and heating) for residential and commercial buildings. Unlike conventional air-source AC systems that exchange heat with the outdoor air, geothermal systems transfer heat to or from the ground via a network of underground pipes called a ground loop.

These systems utilize the earth’s consistent underground temperature—approximately 50 to 60°F year-round in most American climates. This provides a reliable and energy-efficient method to absorb or dissipate heat, resulting in both cooling and heating functions depending on the season.

How Does A Geothermal AC Unit Work?

The Ground Loop: The Heart Of Geothermal Systems

The geothermal system’s effectiveness hinges on the ground loop, which is a network of durable pipes buried horizontally, vertically, or in a pond near the property. A water-based fluid circulates through these pipes, transferring heat to or from the ground, depending on the system’s operational mode (cooling or heating).

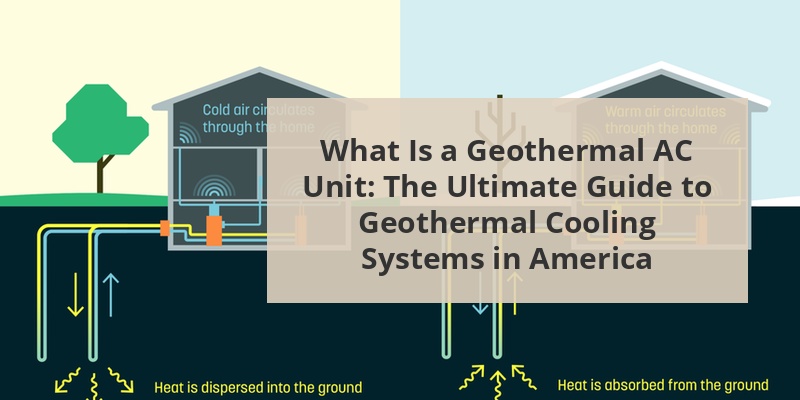

Heat Pump Operation: Cooling And Heating

During the cooling season, a geothermal heat pump removes heat from indoor air and transfers it to the fluid in the ground loop. The fluid then carries the unwanted heat into the earth, where it dissipates harmlessly. The cooled air is recirculated throughout the property.

In winter, the process reverses: the system extracts heat from the ground and delivers it indoors to warm the space. This “reverse” function makes geothermal systems suitable for both air conditioning and heating, making them highly versatile.

Types Of Geothermal Ground Loops

Closed-Loop Systems

• Horizontal Loops: Trenches are dug horizontally, making them ideal for larger lots and new construction.
• Vertical Loops: Boreholes are drilled vertically, suitable for properties with limited outdoor space or in retrofit projects.
• Pond/Lake Loops: Pipes are submerged in a water body, making them economical if a pond is available on-site.

Open-Loop Systems

• Uses groundwater from a well as the heat transfer medium. The water is pumped through the system and returned to the ground.
• Open-loop systems are limited by water availability and quality regulations but can be highly efficient.

Geothermal AC Unit Components

A typical geothermal AC unit consists of several key components that work in harmony:

• Ground Loop: Pipes underground for heat exchange.
• Heat Pump: The core unit that transfers heat between the air and the ground loop.
• Distribution System: Usually a conventional ductwork system or radiant heating/cooling panels for circulating conditioned air or water.
• Fluid Pump: Circulates the antifreeze solution or water through the ground loop.
• Air Handler: Distributes cooled or heated air throughout the building.

Many systems also include programmable thermostats and zoning controls for optimal comfort and energy savings.

Benefits Of Geothermal AC Units

Remarkable Energy Efficiency

Geothermal heat pumps can achieve a Coefficient of Performance (COP) of 3–5, meaning they deliver three to five units of heating or cooling for every unit of electricity used. This is up to 70% more efficient than the best conventional HVAC systems.

Substantial Cost Savings

Over time, geothermal AC units can cut utility bills by 30% to 70%, depending on system size, home efficiency, and climate. While installation costs are higher, the return on investment pays off through reduced operating expenses.

Environmental Advantages

• Reduces greenhouse gas emissions and fossil fuel dependence.
• Quiet operation with minimal outdoor equipment.
• Eligible for federal, state, and local incentives accelerating payback.

Low Maintenance Requirements

The absence of outdoor compressors and fewer moving parts mean geothermal systems typically require less maintenance than conventional HVAC systems. Most systems only need periodic filter changes, fluid checks, and annual inspections.

Long Lifespan And Reliability

The ground loop often lasts 50+ years, far surpassing conventional AC systems, and the indoor heat pump unit typically functions for 20–25 years or more.

Disadvantages And Challenges Of Geothermal AC Units

High Initial Installation Cost

The most significant barrier is the higher upfront cost compared to conventional air conditioners. This is due to the expense of excavation, drilling, and installing ground loops.

Site Suitability

• Not all properties are suitable for ground loop installation. Space, soil composition, access to water, and local regulations must be considered.
• Retrofitting an existing property can be more complex than new construction.

Permitting And Local Regulations

Permitting can vary by jurisdiction, especially for open-loop systems that extract groundwater. Site-specific engineering and local code compliance are critical.

Repair Considerations

While rare, ground loop leaks or failures can be expensive to address, often requiring excavation or specialized service.

Geothermal AC Unit Installation Process

Site Evaluation And System Design

Professional installers begin with a thorough evaluation of the property. They consider available land, soil characteristics, climate, and building heating/cooling loads.

Drilling Or Trenching For Ground Loops

• Horizontal installations require less depth but more surface area.
• Vertical installations reach greater depths and are less disruptive, ideal for small yards and urban settings.

Loop Field Piping And Connections

Installers lay out and connect the ground loop pipe network, then backfill trenches or boreholes. Pipes are typically high-density polyethylene (HDPE) for durability and longevity.

Indoor System Setup

• Heat pump, air handler, and distribution systems are installed indoors.
• Connections are made between the indoor system and the ground loop manifold.

Final steps include configuring thermostats, zoning controls, and system startup checks.

Cost Considerations For Geothermal AC Units

Installation Cost Breakdown

Typical residential geothermal system installation costs in the United States range from $15,000 to $35,000, depending on loop type, depth, geographic location, and system size. Larger properties, vertical systems, and challenging terrain may increase costs.

• Ground loop installation: 40%–60% of total cost
• Heat pump and indoor units: 25%–35% of total cost
• System design and engineering: 5%–15% of total cost
• Permitting and soil testing: Varies by location

Operating Costs And Payback Period

Because of superior efficiency, owners often recover their investment in 5 to 10 years through lower utility bills. Ongoing operating costs are among the lowest of any HVAC technology.

Incentives And Rebates

Federal tax credits, state rebates, and utility incentives can significantly reduce the cost of geothermal AC installation. The federal Investment Tax Credit (ITC) currently allows for a substantial percentage off the system price.

Geothermal AC Unit Performance In Different American Climates

Cold Climates

Geothermal systems are especially advantageous in regions with extreme winters, such as the northern United States. The earth’s moderate temperature provides reliable heat extraction, making these systems far more efficient than air-source heat pumps during prolonged cold spells.

Hot And Humid Climates

In southern and coastal states, geothermal AC units deliver consistent cooling while eliminating the high inefficiency of traditional ACs under sweltering outdoor temperatures.

Desert And Arid Regions

Geothermal systems also maintain high efficiency in arid environments, since the ground temperature is less susceptible to rapid above-ground fluctuations.

How Geothermal AC Units Compare With Traditional Air Conditioning

Parameter	Geothermal AC Unit	Traditional AC
Energy Use	Low	High
Environmental Impact	Minimal	Significant
Durability	Long (Loop: 50+ years)	Shorter (Compressor: 10–15 years)
Noise	Very quiet	Louder outdoor units
Maintenance	Low	Moderate to High

Is Geothermal Cooling Right For Your Home Or Business?

Ideal Candidates For Geothermal AC

• Pursuing significant energy savings and sustainability
• Planning new construction or major renovations
• Properties with available space for ground loop installation
• Long-term ownership (greater than 8–10 years)
• Access to geothermal-friendly incentives or rebates

Considerations Before Installation

• Conduct a professional site and energy assessment
• Review local building codes and permitting requirements
• Evaluate financing options and payback scenarios
• Ensure installer experience and certification (such as IGSHPA)

Geothermal AC Technology Trends And Future Outlook

Emerging Innovations

• Hybrid heat pump systems that combine geothermal and air-source technology
• Integration with solar panels and smart home controls
• Improved loop installation techniques to reduce costs
• “Direct exchange” ground loop technology for higher efficiency

Market Growth In The United States

The US geothermal heat pump market continues to grow as consumers prioritize energy efficiency and sustainability. Advancing technology and expanding incentive programs are expected to make geothermal air conditioning even more accessible and affordable in the coming years.

Frequently Asked Questions About Geothermal AC Units

How Long Does Installation Take?

Residential systems typically require 2–5 days for full installation, depending on loop configuration and property size. Commercial projects may take several weeks.

Do Geothermal Systems Require Ductwork?

Most systems use existing ductwork, but hydronic (water-based) systems can use radiant floor or baseboard heating with special configurations for cooling.

Are Geothermal AC Units Safe?

Geothermal systems are extremely safe, with no combustion gases, exposed flames, or hazardous fuels. The ground loop fluids are non-toxic, and systems are designed for decades of secure operation.

What Is The Warranty Coverage?

Warranties vary by manufacturer and installer, but ground loops often include 50+ year warranties. Indoor heat pumps and controls typically have 10 to 15 year warranties.

Leading Manufacturers And Installers In The United States

The US market features a range of reputable geothermal AC unit manufacturers and installation experts. Key brands include:

• WaterFurnace
• ClimateMaster
• Bosch Thermotechnology
• Trane
• Daikin

Always select International Ground Source Heat Pump Association (IGSHPA) certified professionals for installations to ensure reliability and warranty protection.

Key Takeaways And Next Steps

• Geothermal AC units provide unparalleled energy efficiency, reliability, and comfort for American homes and businesses.
• Higher initial costs are offset by substantial long-term savings and environmental benefits.
• A site evaluation and professional consultation are essential to determine feasibility and payback.
• Continued incentives and technology advances will drive broader adoption of geothermal climate control in the coming years.
